Inertial Navigation Systems

GNSS and inertial measurement unit

The OxTS GNSS inertial navigation units measure where a vehicle is, how it’s oriented, and how it’s moving in every axis.

As well as outputting accurate positioning data, these highly accurate devices capture the acceleration, speed, roll, pitch and yaw at frequencies of up to 250Hz and can displace the output to any point on the vehicle. They are the same systems that Euro NCAP, ANCAP, NHTSA and many others specify in their test requirements.

Products

RT3000 v3

The industry standard GNSS/INS for ADAS and autonomous vehicle testing

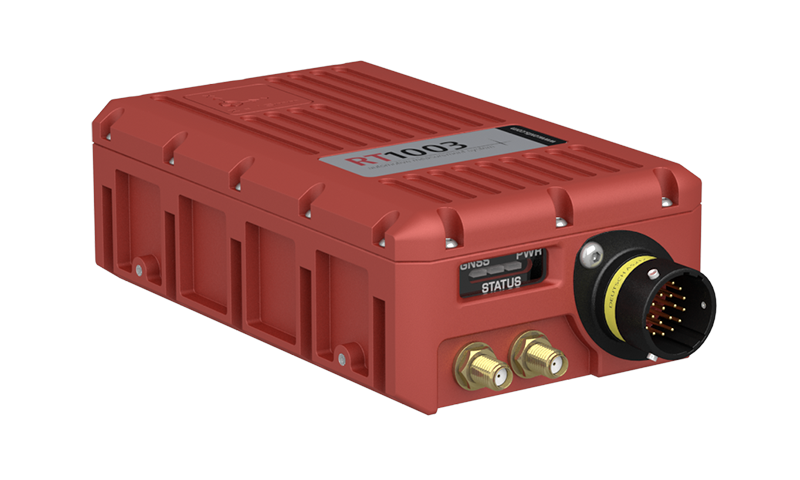

RT1003

The compact INS for space constrained vehicle testing

RT500 v1

The entry-level INS for slip angle measurement and brake testing

RT-Range

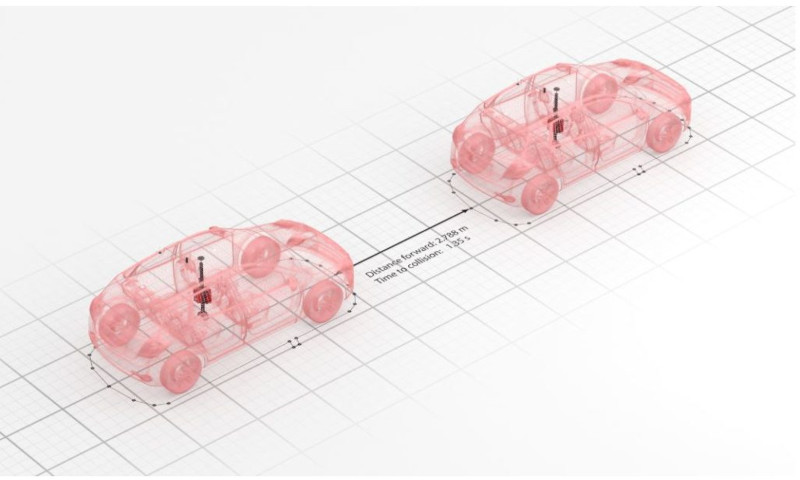

Vehicle-to-vehicle and vehicle-to-lane testing capability on the RT3000 v3

Specifications

ParametersRT3000 v3RT1003RT500
GNSS constellationsGPS L1, L2
GLONASS L1, L2
BeiDou B1, B2
Galileo E1, E5
GPS L1, L2
GLONASS L1, L2 (optional)
GPS L1
GLONASS L1
Positional accuracy (CEP)SPS 1.5 m
SBAS 0.6 m
DGPS 0.4 m
RTK 0.01 m
SPS 1.6 m
SBAS 0.6 m
DGPS 0.4 m
RTK 0.02 m
SPS 2.0 m
SBAS 1.0 m
DGPS 0.5 m
Velocity accuracy (RMS)0.05 km/h0.1 km/h0.1 km/h
Roll / pitch accuracy
(1σ)
0.03º0.05º0.05º
Heading accuracy (1σ)0.05º (dual antenna)0.1º0.1º
Track angle accuracy (1σ)0.07º0.15º0.15º
Slip angle accuracy (1σ)0.15º0.25º0.25º
Accelerometer
– Technology
– Range
– Bias stability
– Linearity
– Scale factor

Servo
10g / 30g (optional)
2 μg
0.01%
0.1%

MEMS
30 g
2 μg
0.05%
0.01%

MEMS
10g / 30g (optional)
5 μg
0.01%
0.1%
Gyro
– Technology
– Range
– Bias stability
– Linearity
– Scale factor

Servo
10g / 30g (optional)
2 μg
0.01%
0.1%

MEMS
300º/s
3º/hr
0.05%
0.1%

MEMS
100º/s / 300º/s (optional)
3º/hr
0.05%
0.1%
Update rate100 Hz
250 Hz (optional)
100 Hz
250 Hz (optional)
100 Hz
250 Hz (optional)
Input voltage10-48 V DC10-31 V DC10-48 V DC
Power consumption14 W9 W12 W
Operating temperature-40° to 70 °C-40° to 70 °C-40° to 70 °C
Environmental protectionIP65IP65IP65
Dimension184 x 120 x 71 mm142 x 77 x 41 mm184 x 120 x 71 mm
Weight1.4 kg435 g1.4 kg
Internal storage32 GB32 GB32 GB
InterfacesEthernet
Serial
Digital
CAN / CAN-FD
Ethernet
Serial
Digital
CAN
Ethernet
Serial
Digital
CAN / CAN-FD

Accessories

RT-Base
GPS-Base
RT-Strut
RT-UPS

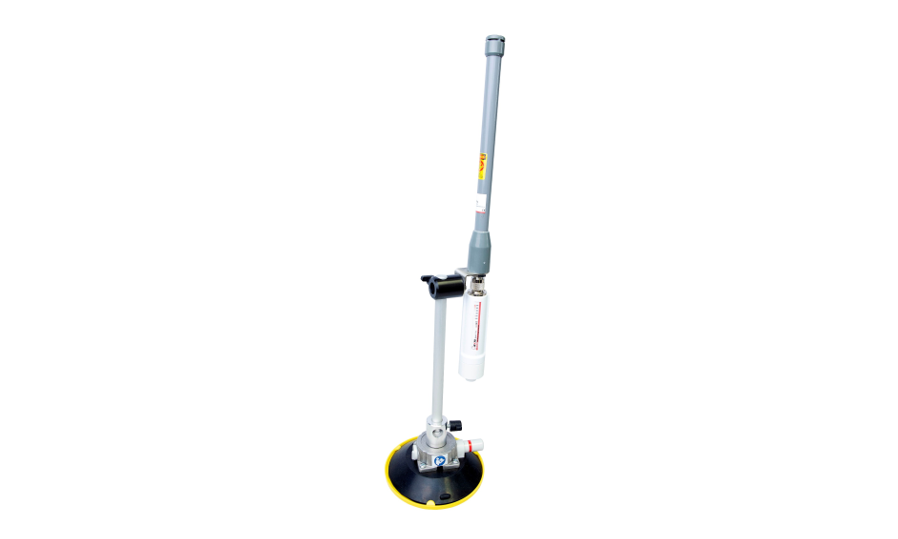

RT-XLAN

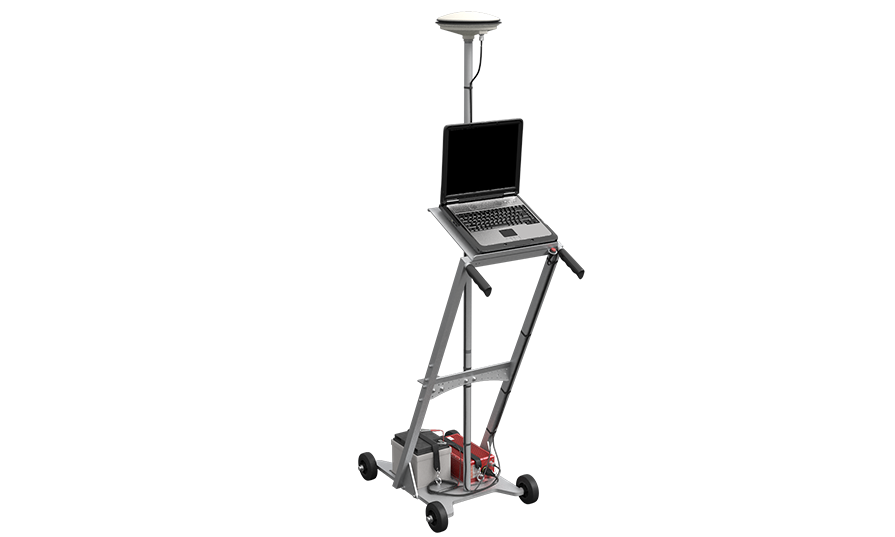

Survey Trolley

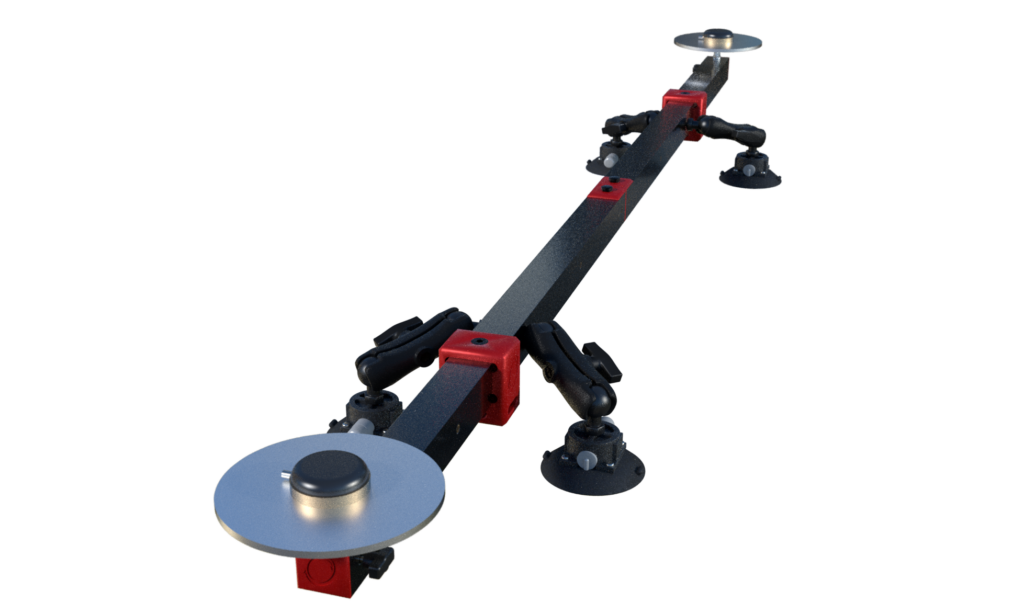

Dual Antenna Roof Mount

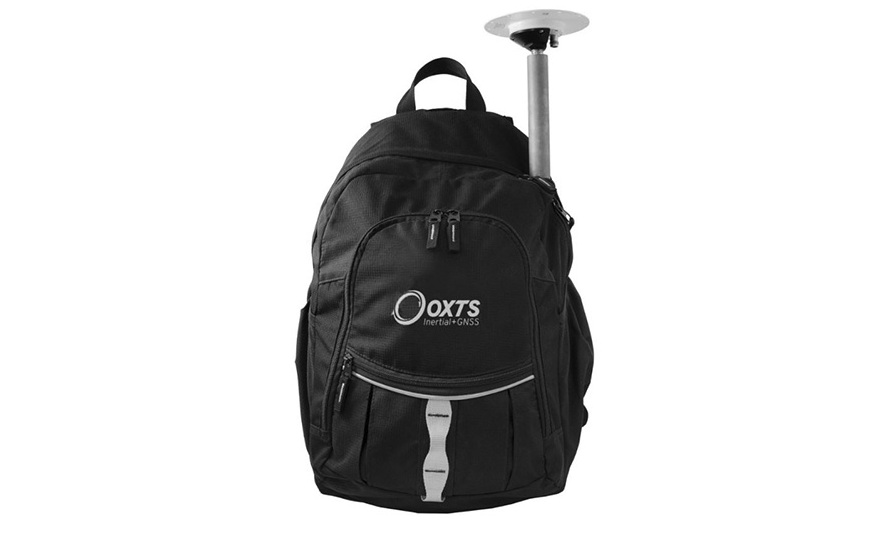

RT-Backpack
